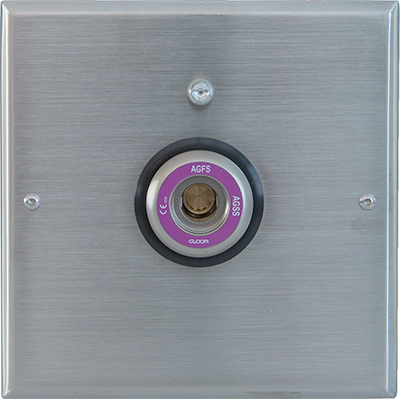

SWISS optio terminal unit AGSS
The terminal unit AGSS at a glance:
- Attractive, functional design
- Full metal and robust
- Service-friendly and long-lasting
- For use in hospitals, clinics and emergency services
The terminal unit AGSS (Anaesthetic Gas Scavenging System) serves to channel off in a controlled manner excess anaesthetic gas.
The negative pressure (vacuum), which is required by the AGSS terminal unit for the extraction of the excess and exhaled anaesthetic gas, is generated via an integrated ejector operated with medical air. The extraction is carried out using a hose which is connected via a connector (1L) corresponding to the EN ISO 9170-2 standard to the AGSS terminal unit.
By coupling the hose, the AGSS terminal unit will be put into operation. An optical operating indicator (green light) indicates operation of the AGSS terminal unit.
The terminal unit AGSS is for assembling in ducts or for flush mounted installations. Because it is made of solid metal, the AGSS terminal unit is very robust and correspondingly durable.
The terminal unit AGSS complies with the requirements of the standard EN ISO 9170-2. CE marking according to the Guideline for Medical Products 93/42/EEC, Appendix IX, Class IIa.
Download files
Technical data:
- Pressure range for the supply of the ejector
max. 6 bar
- Model variants
in-duct assembly / ceiling supply units
flush mounting
- Operating gas ejector
air (medical)
- Suction medium
anaesthesia gas
- Connections
discharge suction medium:
pipe end with outside diameter of 15 mm for connection with a flexible hose to the clinc’s exhaust line
supply of ejector:
Ø4 mm pneumatic connector for the ejector’s supply air
- Material
brass (outer parts nickel plated), copper, POM, EPDM, hostaphan
- Operating temperature
-20º to +60ºC
- Dimensions
W x D x diameter : 80 mm x 69.5 mm x Ø 48 mm (base assembly group)
- Weight
900 gr
