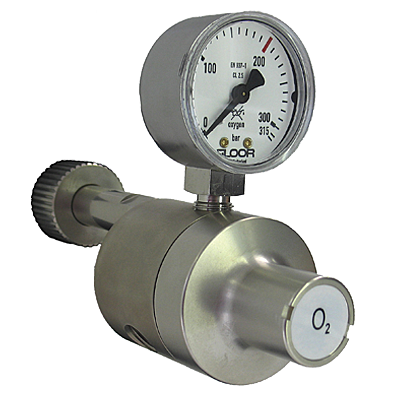

Pressure regulator with preset working pressure at very high flow rates

The HP stabilo at a glance:

• suitable for all applications which require very stable outlet pressure under very high flow rates
• despite its single-stage construction the integrated compensation provides constant outlet pressure also with falling cylinder pressure
• for preset working pressure up to 10 bar
• very compact single-stage construction with inlet connection from rear
• in versions for inlet pressure 200 and 300 bar available
• mainly intended for the supply of medical devices in clinics

The area of application of the medical pressure reducing valve HP stabilo is anywhere, where a preset working pressure is required with both high pressure stability and small construction. Due to the in-built pressure compensation it provides very stable working pressure while the gas cylinder is being emptied despite the single-stage construction. The HP stabilo is available for inlet pressure of 200 as well as 300 bar.

The HP stabilo has a gauge for indication of the cylinder pressure, and as well a pressure relief valve. The two outlets can be equipped with self-closing outlets, NIST housings or quick couplings so that for example tubes can be connected to supply medical devices.

The HP stabilo is preset by the manufacturer to a fixed working pressure of 0.5 to 10 bar.

The HP stabilo corresponds to the norm EN ISO 10524-1. CE marking according to the Guideline for Medical Products 93/42/EEC, Annex IX, class IIb.
