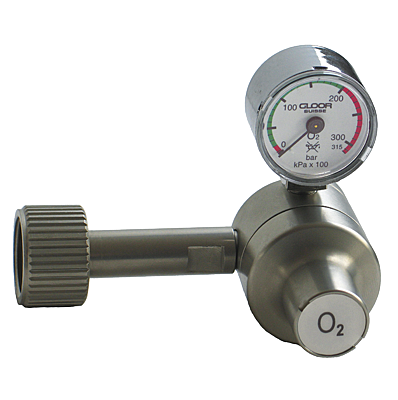

Pressure regulator with preset working pressure and high pressure consistency

The HP stabilo mini at a glance:

• suitable for all applications which require very stable outlet pressure under high flow rates and simultaneously small design size
• despite its single-stage construction the integrated compensation provides constant outlet pressure also with falling cylinder pressure
• for preset working pressure or for continuous adjustment up to 10 bar
• very compact single-stage construction with lateral inlet connection
• mainly intended for the supply of medical devices in clinics

The area of application of the medical pressure reducing valve HP stabilo mini is anywhere, where a preset working pressure is required with both high pressure stability and small construction. Due to the in-built pressure compensation the HP stabilo mini provides very stable working pressure while the gas cylinder is being emptied despite the single-stage construction.

The HP stabilo mini has a gauge for indication of the cylinder pressure (and for the version with adjustable pressure also a working pressure gauge), and as well a pressure relief valve. The outlet (version with adjustable working pressure), resp. the two outlets (version with preset pressure) can be equipped with self-closing outlets, NIST housings or quick couplings so that for example tubes can be connected to supply medical devices.

The HP stabilo mini is either preset by the manufacturer to a fixed working pressure of 0.5 to 10 bar or it is available with adjustable working pressure for various pressure ranges (0-1.5, 0-4 or 0-10 bar). The HP stabilo mini corresponds to the norm EN ISO 10524-1. CE marking according to the Guideline for Medical Products 93/42/EEC, Annex IX, class IIb.
