Low pressure regulators for very high flowrate

Low pressure regulators for very high flowrate

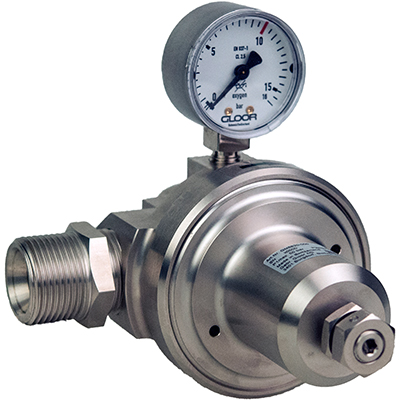

SWISS optio pipeline regulator maxi

The pipeline regulator maxi at a glance:

  • very high flowrate
  • for inlet pressure up to 50 bar
  • for working pressure up to 10 bar
  • for installation in flow direction from the right or from the left
  • the application is mainly intended for central gas supply systems in hospitals and clinics

The field of application of the medical pipeline regulator maxi is mainly found in the area of central gas supply systems for medical gases. The pipeline regulator maxi is used either as a supply regulator in a cold vaporizer (liquiefied gas tank) line or as a second pressure stage in medical gas supply systems with gas cylinders or racks.

The working pressure of the pipeline regulator maxi can be adjusted up 10 bar. The adjustment of the pressure is effected with the help of a tool. Once adjusted, the pressure is secured by means of a counter nut to prevent any unintended or unauthorised adjustment of the pressure.

The pipeline regulator maxi is equipped with a working pressure gauge and in the inlet with an integrated filter made of inox wire mesh.

The pipeline regulator maxi has been submitted to an ignition test for oxygen with a supply pressure of 100 bar in accordance to EN ISO 10524-2. CE marking according to Guideline for Medical Products 93/42/EEC.

Download files

SWISS optio pipeline regulator maxi

Technical data:

  • Construction

    single stage diaphragm regulator

  • Inlet pressure

    max. 50 bar

  • Outlet pressure

    0 – 6, bar, 0 - 10 bar

  • Flow rate for air

    P1 = 15 bar, P2 = 10 bar, Q = 500 m3 /h
    P1 = 15 bar, P2 = 5 bar, Q = 280 m3 /h
    P1 = 25 bar, P2 = 10 bar, Q = 640 m3/h
    P1 = 25 bar, P2 = 5 bar, Q = 300 m3/h
    (for additional indications on flow rates, ask for our flow charts)

  • Gas

    Air, O2, CO2, N2O, N2, He, Xe and their mixtures

  • Inlet

    lateral, G 1“ inner thread (as option with nipple G 1“ outer thread)

  • Outlet

    lateral, G 1“ inner thread

  • Material

    body brass, outer parts nickel plated or plain brass, EPDM, filter stainless steel

  • Sealing material

    EPDM, PA6, POM

  • Operating temperature

    -20º bis +60ºC

  • Dimensions

    B x H x T: 136 × 148 × 153 mm

  • Weight

    3.3 kg
