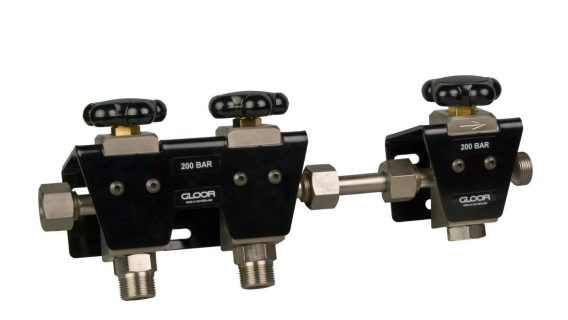

SWISS optio cylinder batteries
The cylinder batteries at a glance:
- extremely flexible modular system permits individual attention to user requirements
- assembled on-site – no problems for transporting the individual components
- adapts to the on-site space conditions; subsequent installation expansion possible
- shut-off possibility of the entire gas flow of one side and as well of the individual cylinder
- for inlet pressure 200 and 300 bar available
The cylinder batteries consist of individual modules which can be combined according to the client’s wishes. They can be supplemented where required with manual or automatic change-over switching stations. According to the gas consumption single cylinder stations for the connection of a single cylinder or cylinder rack each side are used or the corresponding number of collector stations or additional cylinder stations. By connecting several cylinders a master manifold valve provides that the gas flow of the entire side can be shut-off.
The cylinders are connected with the cylinder batteries by means of high pressure hoses. The stations dispose of an integrated fixture for wall mounting, an individual high pressure shut-off valve, a snap hook for the retaining of the high pressure hoses, an integrated sinter filter and as option a backflow valve per cylinder. As further option the cylinder batteries can be equipped with a purging valve for the pressure release and purging of the battery when changing the cylinders.
The individual components of the cylinder batteries are combined with connecting tubes with lock nuts on both sides. With the lenghts of the connecting tubes the on-site space conditions can be met.
The cylinder batteries are certified in accordance with ISO 10297. CE marking according to the Guideline for
Download files
Technical data:
- Classification
unit class to EU guideline 93/42 EEC, annex IX, class II a
- Inlet pressure
200 bar, resp. 300 bar
- Gases
AIR, O2, CO2, N2O, He, Xe, test gas mixtures
- Inlet
für 200 bar : G 3/4“ / 300 bar : M24x1.5
- Outlet
W 21.8x1/14, for master manifold valve and individual cylinder version gas specific
- Material
brass nickel plated, stainless steel
- Sealing material
EPDM, NBR, PEEK
- Operating temperature
-20° to + 60ºC
- Weight
master manifold valve approx. 1.6 kg
additional cylinder station approx. 1.6 kg
collector station approx. 3.7 kg
