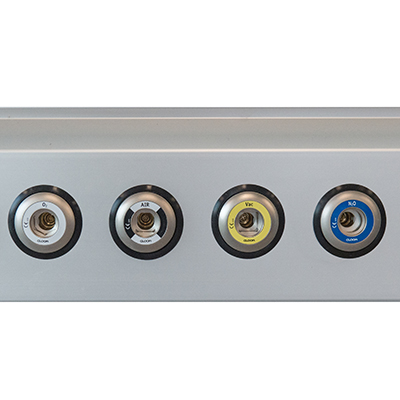

SWISS optio terminal units DIN / CMED
The terminal unit DIN / CMED at a glance:
- Attractive, functional design
- Full metal and robust
- Gas coded
- Service-friendly and long-lasting
- For use in hospitals, clinics and emergency services
The terminal unit DIN / CMED serves the extraction of medical gases and vacuum from the central gas supply.
The terminal unit DIN / CMED is for assembling in ducts, installing in ceiling supply units and is designed for flushmounted/surface-mounted installations. A “floating” cover ring (available as an accessory) serves the minimising of the gap between the terminal unit and the front cover. This results in aesthetic and dust-repellent advantages.
The design of the terminal unit DIN / CMED is unique. The full metal design is robust, functional and long-lasting.
The terminal unit DIN / CMED has a shut-off valve which fully stops the gas supply without the feed pipe having to be shut off. An easy-to-replace sealing unit guarantees affordable and fast maintenance work.
The terminal unit DIN / CMED complies with the requirements of the harmonised standard EN ISO 9170-1. CE marking according to the Guideline for Medical Products 93/42/EEC, Appendix IX, Class IIa.
Download files
Technical data:
- Pressure range
pressurised gases max. 6 bar, vacuum 0 to -1000 mbar
- Model variants
duct installation
ceiling supply units
flush-mount
surface-mount
with or without cover ring
- Gas
Air, O2, CO2, N2O, vacuum
- Connection
pipe, straight diameter 8 mm for soldering into the central gas supply
pipe, bent diameter 8 mm for soldering into the central gas supply
others on request
- Material
brass, outer parts nickel plated, copper, POM, EPDM, FKM
- Operating temperature
-20º to +60ºC
- Dimensions
W x D x diameter: 80 mm x 69.5 mm x 50 mm (base assembly group)
- Weight
700 gr (version media duct)
