SWISS optio basic regflow
The basic regflow at a glance:
- compact construction
- continuous adjustment of the withdrawn flow-rate
- available in three different flow ranges
- up to two further outlets possible for the connection of consumers
- mainly intended for the usage in clinics

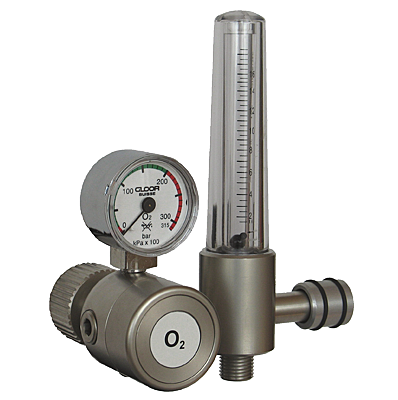

The medical pressure reducing valve basic reglow is used for the dosage of medical gases from a highpressure gas cylinder by means of an integrated flowmeter with floating body.
On request the basic reglow can be equipped with one or two additinal outlets for the connection of further consumers.
The two additional outlets of the basic reglow can be equipped according to the application with self-closing outlets, NIST housings or quick couplings. It must be noted that the total withdrawal amount must not exceed 55 l/min.
The basic reglow is certified in accordance with EN ISO 10524-1 (incl. ignition test for oxygen). CE marking according to the Guideline for Medical Products 93/42/EEC.
Download files
Technical data:
- Construction pressure valve
single-stage piston pressure reducing valve
- Construction flowmeter
flowmeter with floating body
- Inlet pressure
200 bar
- Outlet pressure
4,5 bar (fixed)
- Flow rate ranges
0 – 3 l/min, 0 – 16 l/min, 0 – 32 l/min
- Measurement accuracy
+/- 10% or 0.5 l/min of measured value, whichever is higher
- Gas
Air, O2, CO2, N2O, N2 und deren Gemische
- Inlet
cylinder connection DIN, NF, AGA, BS, PIN-Index, UNI (others on request)
- Outlet flowmeter
external thread G1/4“, G3/8“, 9/16“UNF
- Additional outlets
Additional outlets G1/4“ internal thread, as option with self-closing outlets M12x1, NIST housing, quick coupling (country specific)
- Material
body brass, external parts nickel plated, measuring and cover tube made of PC
- Sealing material
CU, EPDM, SI, PEEK, PE, PA, FKM
- Operating temperature
-20 up to +60ºC
- Dimensions
W x H x D: 117 x 148 x 80 mm
- Weight
800 g
