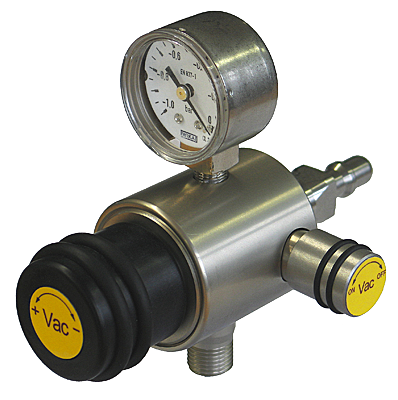

Vacuum regulators up to –450 and –900 mbar

Vacuum regulators up to –450 and –900 mbar
Configure your product

SWISS optio clean vac

The clean vac at a glance:

  • vacuum adjustable up to - 450 mbar, respectively up to - 900 mbar
  • continuous adjustment of vacuum
  • with integrated shut-off valve
  • possibility to connect a hose or a septic fluid jar
  • the application is mainly in hospitals and clinics

The field of application of the vacuum regulator clean vac is mainly in the area of bronchoaspiration and of surgical aspiration. The clean vac is used for the continuous adjustment of the vacuum and is coupled directly with the country-specific probe into the extraction socket of the corresponding central vacuum supply.

Depending of the supply vacuum, the vacuum regulator clean vac can be continuously adjusted by means of the regulating handle from 0 up to - 450 mbar or from 0 up to - 900 mbar. The clean vac is equipped with a shut-off valve so that the vacuum supply can be closed with a rotary motion of 180°. After re-opening the shutoff valve, the vacuum remains unchanged after the break without any re-adjustment.

On the aspiration connection of the clean vac, a septic fluid jar is connected directly or by means of a hose and where appropriate a bacterial filter.

The clean vac is certified in accordance to EN ISO 10079-3, CE marking according to the Guideline for Medical Products 93/42/EEC, annex IX, rule XI, class IIb.

Technical data:

  • Construction

    diaphragm vacuum regulator

  • Vacuum regulation ranges

    0 up to - 450 mbar, alternatively 0 up to - 900 mbar

  • Vacuum indication

    0 up to - 600 mbar, alternatively 0 up to -1000 mbar

  • Throughput

    300 mbar → 60 l/min

    500 mbar → 63 l/min

    700 mbar → 65 l/min

    for additional information about other values, ask for our flow charts

    (the throughput and the adjustable range is dependent on the supply vacuum)

  • Inlet

    external thread G 1/4“, DIN, NF, AGA, BS, UNI probe (others on request),

    clamping rail bracket with NIST inlet

  • Outlet

    threaded nipple 9/16“ UNF, hose connector

  • Material

    body brass, external parts nickel-plated

  • Sealing material

    Cu, PA, FKM, EPDM, NBR

  • Operating temperature

    -20° up to +60°C

  • Dimensions

    W x H x D: 74 x 116 x 135 mm

  • Weight

    950 gr
