SWISS optio reduc hp1

The reduc hp1 at a glance:

  • For the variable regulation of a working pressure of 0-10 bar
  • Also available with fixed working pressure
  • High flow capacity
  • For the direct connection of one or two consumers
  • With integrated pressure relief valve
  • Mainly intended for use in clinics

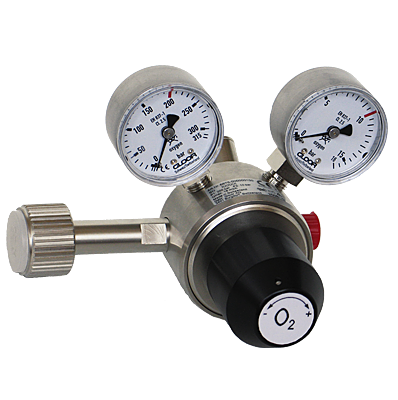

The reduc hp1 medical pressure reducing valve is used for the direct supply of one or two consumers with medical gas at a variable or fixed supply pressure from a high-pressure gas cylinder.

The reduc hp1 is fitted with a high pressure gauge for the cylinder pressure and a low pressure gauge for indication of the set working pressure (both gauges according EN 837-1). Depending on the model, the desired working pressure can be set using the regulating handle on the pressure reducing valve, or can be set to a fixed pressure at the factory.

As an option, the reduc hp1 can have two outlets. The two outlets are used for the direct supply of medical equipment, of flow measuring devices or also for the direct feed to the emergency supply of a central medical gas supply system.

The reduc hp1 is certified in accordance with EN ISO 10524-1 (incl. ignition test for oxygen); CE marking according to the Guideline for Medical Products 93/42/EEC.

Technical data:

  • Construction

    Single-stage diaphragm pressure reducing valve

  • Inlet pressure

    200 bar

  • Outlet pressure

    Adjustable 0-1.5 / 0-4 / 0-6 / 0-10 bar, or preset at customers request

  • Flow rate

    Q1 = 16 Nm3/h / Qmax= 17 Nm3/h

  • Irregularity coefficient i

    < 0.1 (P1=200...20 bar)

  • Gas

    Air, O2, CO2, N2O, N2, He, Xe, test gas mixtures

  • Inlet

    Cylinder conection DIN, NF, AGA, BS, PIN-Index, UNI (others on request)

  • Outlet

    G1/4" inner thread (one outlet downward, one outlet lateral), NIST, quick coupling

  • Material

    Brass body, external parts nickel-plated

  • Sealing material

    EPDM, Si, PA, PEEK

  • Operating temperature

    -20° to +60°

  • Dimensions

    W x H X D: 165 x 117 x 115 mm

  • Weight

    1.8 kg
