Ejector for up to –700 mbar

Ejector for up to –700 mbar
Configure your product

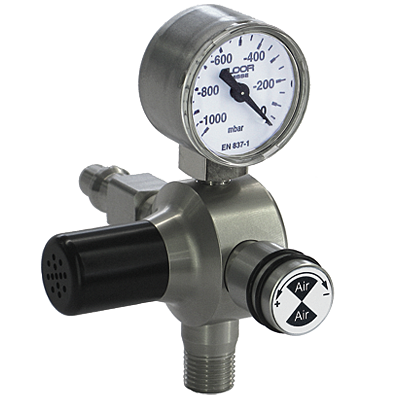

SWISS optio clean vent mini

The clean vent mini at a glance:

  • apt for continuous operation
  • continuous regulation of the vacuum up to - 700 mbar
  • with integrated overpressure valve
  • option for connection of a hose or a septic fluid jar
  • the application is mainly in hospitals and clinics and as well in medical practice

The field of application of the ejector clean vent mini is mainly in the area of bronchoaspiration. The clean vent mini is fed with air from a central gas supply system and is coupled directly with the country-specific probe into th extraction socket. The clean vent mini thus generates the required vacuum.

The vaccum can be adjusted continuously by means of the regulating handle of the ejector clean vent mini.

The integrated overpressure valve avoids overpressure on the side of the patient in case of faulty handling of the clean vent mini. A mechanical overflow protection or a filter at the septic fluid jar - which are not included in the device - protects the equipment from excessive aspiration.

The clean vent mini is in conformity with EN ISO 10079-3. CE marking according to Guideline for Medical Products 93/42/EEC, annex IX, class IIb.

Technical data:

  • Construction

    ejector with venturi nozzle

  • Supply pressure

    4.5 bar +/- 10%

  • Vacuum regulation range

    0 up to - 700 mbar

  • Vacuum indication

    0 up to -1000 mbar

  • Throughput

    0 – 20 l/min

  • Noise level

    max. 55 dB[A]

  • Gas

    Air, O2

  • Inlet

    external thread G1/4“, DIN, NF, AGA, BS, UNI probe (others on request), clamping rail bracket with NIST inlet

  • Outlet (suction connection)

    threaded connection 9/16“ UNF, hose connector 6 mm

  • Material

    body brass, external parts nickel-plated, POM

  • Sealing material

    Cu, POM, FKM, MVQ

  • Operating temperature

    -20° up to +60°C

  • Dimensions

    W x H x D : 70 x 110 x 120 mm (with DIN probe)

  • Weight

    450 gr
