SWISS optio tubes

The connection tubes at a glance:

  • for the safe connection of pressurised gas and/or vacuum sources to the consumer
  • high quality materials at the connections (stainless steel, nickel-plated brass) and the tubes
  • connection tubes in ISO colour coded
  • available in various international standards (DIN, BS, NF, Carbamed, Medap, AGA, UNI etc.)
  • for mobile and stationary applications

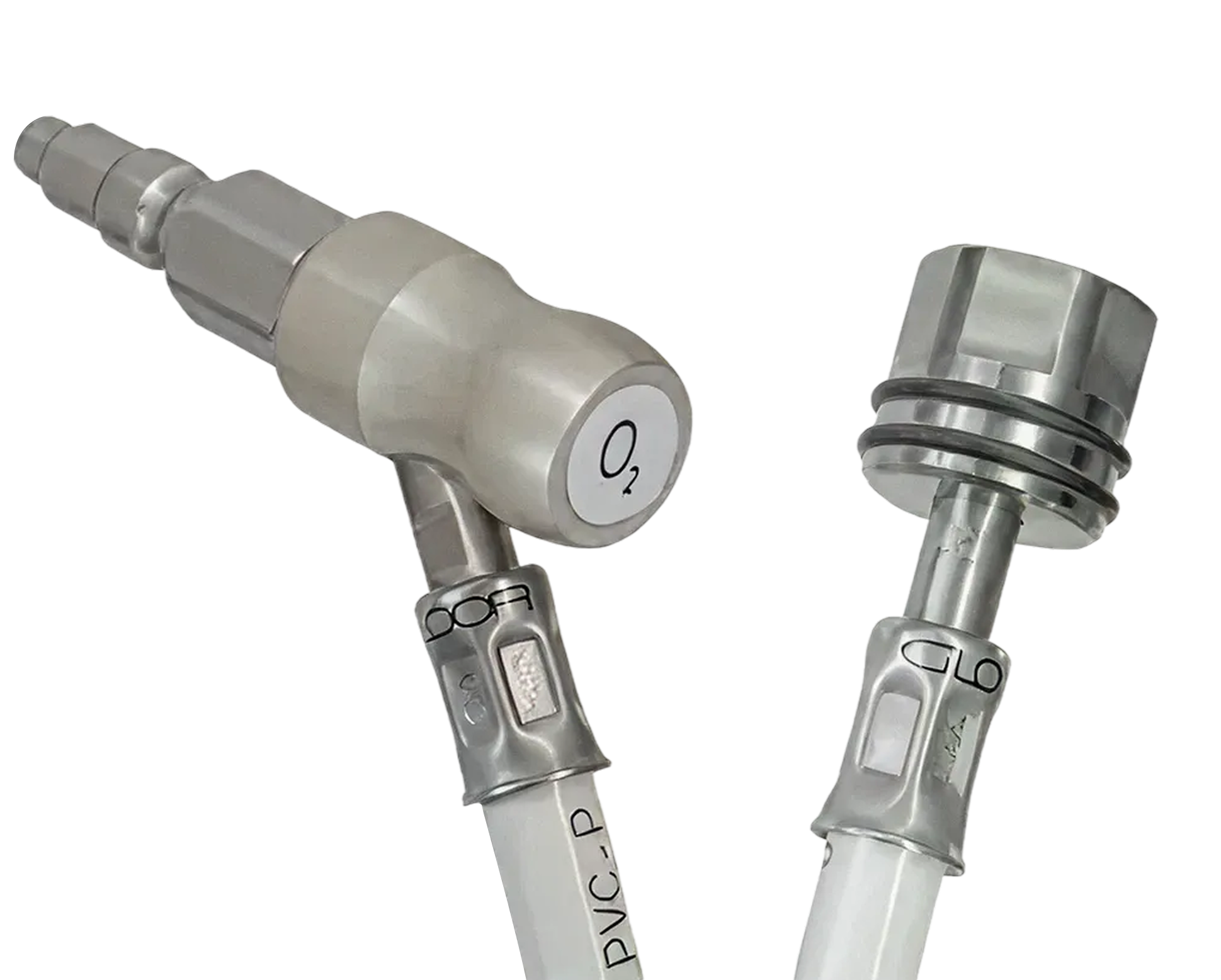

These medical low pressure tubes are used for the connection of pressurised gas and/or vacuum sources to the consumer. On the supply side the connection tube is equipped with a gas specific angle gas probe; on the consumer side with a gas specific NIST (or DISS) connection. There are three different models of angle gas probes at choice. The NIST connection is also available in a 90° (angle) version.

The high quality materials also guarantee a safe connection and disconnection of the tube from the terminal unit over the long term. On demand, the angle gas probe can also be fitted with a non-return valve.

The connection tubes are available in standard lengths of 1.5, 3 and 5 metres. Also available in special lengths on request.

The connection tubes are certified in accordance with EN ISO 5359. CE marking according to the Guideline for Medical Products 93/42/EEC.

Download files

Technical data:

  • Classification

    equipment classification according CE Guideline 93/42 EEC Annex IX, class IIa

  • UMDNS-Code

    16-780 connection tube for compressed gases, 16-779 connection tube for vacuum

    devices (nomenclature for medical products)

  • Operating pressure

    max. 14 bar

  • Flow

    200 l/min bei 3.2 bar

  • Pressure loss

    0.8 bar at 3.2 bar and 200 l/min

  • Gas

    Air, O2, AIR/O2, CO2, N2O, VAC

  • Inlet

    DIN, NF, AGA, BS, Carbamed, Medap, UNI probe (others on request), NIST, DISS

  • Outlet

    NIST, NIST 90°, DISS, DISS 90°, DIN coupling etc.

  • Material

    brass nickel-plated, stainless steel, PVC-P

  • Sealing material

    FKM 75, NBR 70

  • Operating temperature

    -20° up to +40°C

  • Weight

    320 - 490 gr (according to angle probe and DIN version 1.5 m)

Configure your product

Configuration chosen might not be available for all gases.
